Various Styles Galvanized Roof Sheet Glazed Tile Roll Making Forming Machine
YBT Glazed Tile Roll Making Forming Machine are sold all over the world .We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.
Components for the Machine:
The rollition driven forming stations, pressing die, cutting equipment, hydraulic station, PLC controler and manual unload product run out table.
| Material specification | Aluminum, alu-zinc, galvanized and pre-painted galvanized steel. |
| Thickness | 0.3-0.7mm. |
| Main motor power | 5.5 kw. |
| Hydraulic station power | 5.5kw. |
| Feeding width | 1250mm. |
| Cover width | 1092mm |
| Yield stress | 235Mpa (33KSI) ~ 345Mpa (50KSI). |
| Roll forming Speed | 15-18 m/min
3-4 m/minute (including step pressing and cutting) |
| Cutting Tolerance | +/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm). |
| Manual Uncoiler | Max. Capacity: 5000kgs. |
| Coil inner diameter | 508mm. |
| Voltage | 380V,3 Phase,50HZ,Or As per customer's request. |
| Numbers of stands | 10 stations |
| Type of cutting | Roll-formed and length-set profile cutting. |
Roller material :
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
Production Progress
1 . Engineer Making the drwaing
2 . Prepare the raw material
3 . NC finish Machine
4 . Assemble
5 .Adjustting
6 . Shipping
Our Services
1 . Free technical support and free accessories supply.
2 . Engineer available to service machinery overseas.
3 . One year warranty is provided.
4 . Long life technical guidance for free.
5 . We always offer technical support, quick response, all your inquire will be replied in 24 hours.
Main product :

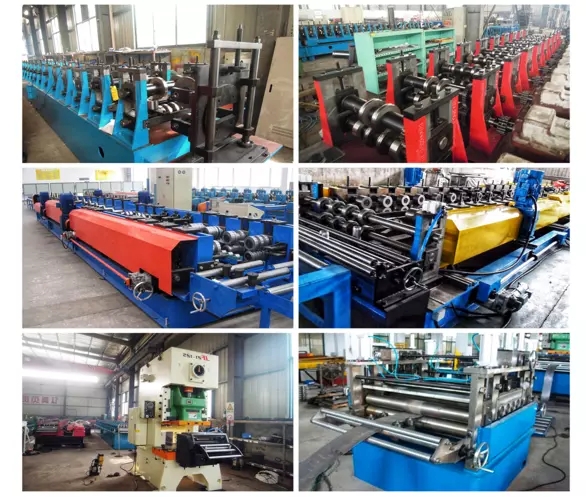

Roof roll forming machine,C and Z purlin roll forming machine,Downpipe roll forming machine
Hydraulic decoiler,Light keel roll forming machine,Bending machine,Shearing machine
slitting machine,Roller shutter door roll forming machine
